J-CAT GRT
Desktop Cutting Robot

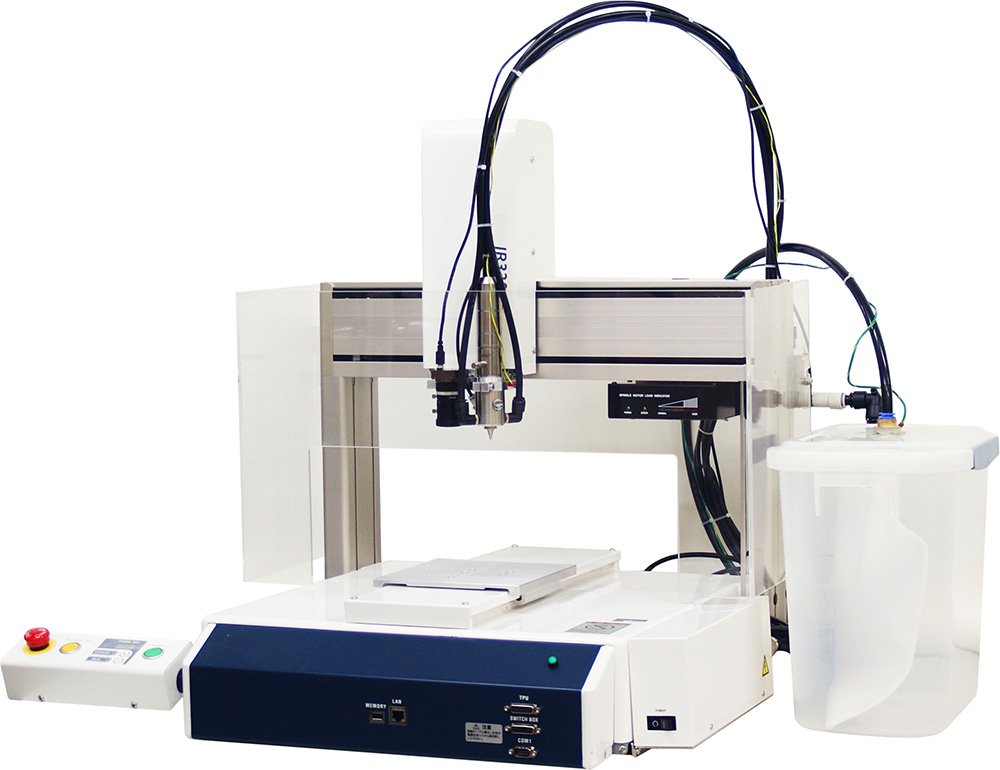

Apollo Seiko introduces a new line-up of three axes desktop robot models with integral position detection encoders. An electric router with exclusive and easy to use software and high powered dust collection kit are included.
A glass epoxy or standard FR-4 PCB equal to or less than 1.6 mm thickness can be cut while monitoring the router bit sharpness. This capability reduces faulty cutting situations. With the addition of a router life sensor and a USB camera teaching function (option), the J-CAT GRT is much more efficient and allows for a more stable process.
Three models of PCB cutting robots are available.
- J-CAT GRT 200
- J-CAT GRT 300
- J-CAT GRT 400
J-CAT GRT Specifications
|
Mode
|
J-CAT 200 GRT
|
J-CAT 300 GRT
|
J-CAT 400 GRT
|
|---|---|---|---|
| Maximum Work Dimensions | X=200mm, Y=195mm, Z=45mm | X=300mm, Y=320mm, Z=95mm | X=400mm, Y=400mm, Z=95mm |
| Size (W x D x H) Weight |
350 x 436 x 615 mm 26kg |
585 x 580 x 650 mm 39 kg |
646 x 641 x 650 mm 47 kg |
| Applicable Board Material | Glass epoxy / Paper phenol laminate, etc. (Maximum thickness 1.6 mm) | ||
| Tool Specifications | DC brushless motor Rated speed 40,000 rpm |
||
| Trace Accuracy | 0.2 mm (guide value) (When router 0.8 mm, cutting speed 10 mm/s, PCB thickness 1.6mm) |
||
| Teaching Method | Remote (JOG) / Manual data input (MDI) | ||
| Vacuuming Method | Ejector | ||
| Power Supply | AC90 ~ 132V AC180 ~ 250V1Ph/340VA | ||
| Air Supply | 0.5MPa (Only dry clean air) | ||
| Air Consumption | 200NI/min | ||
| Standard Accessories | Teaching pendant, Manual, Software(Factory installed), Dust collecting kit, Router bit (Consumable) and Spare vacuum nozzle | ||
