LUNA

Automatic Soldering Unit

The Luna system can be easily integrated into dial-table, conveyor, robotic or semi-automated environments. The 7 solder profiles can be selected via digital I/O and an extensive iron tip library provide for a solution for virtually all selective solder applications.

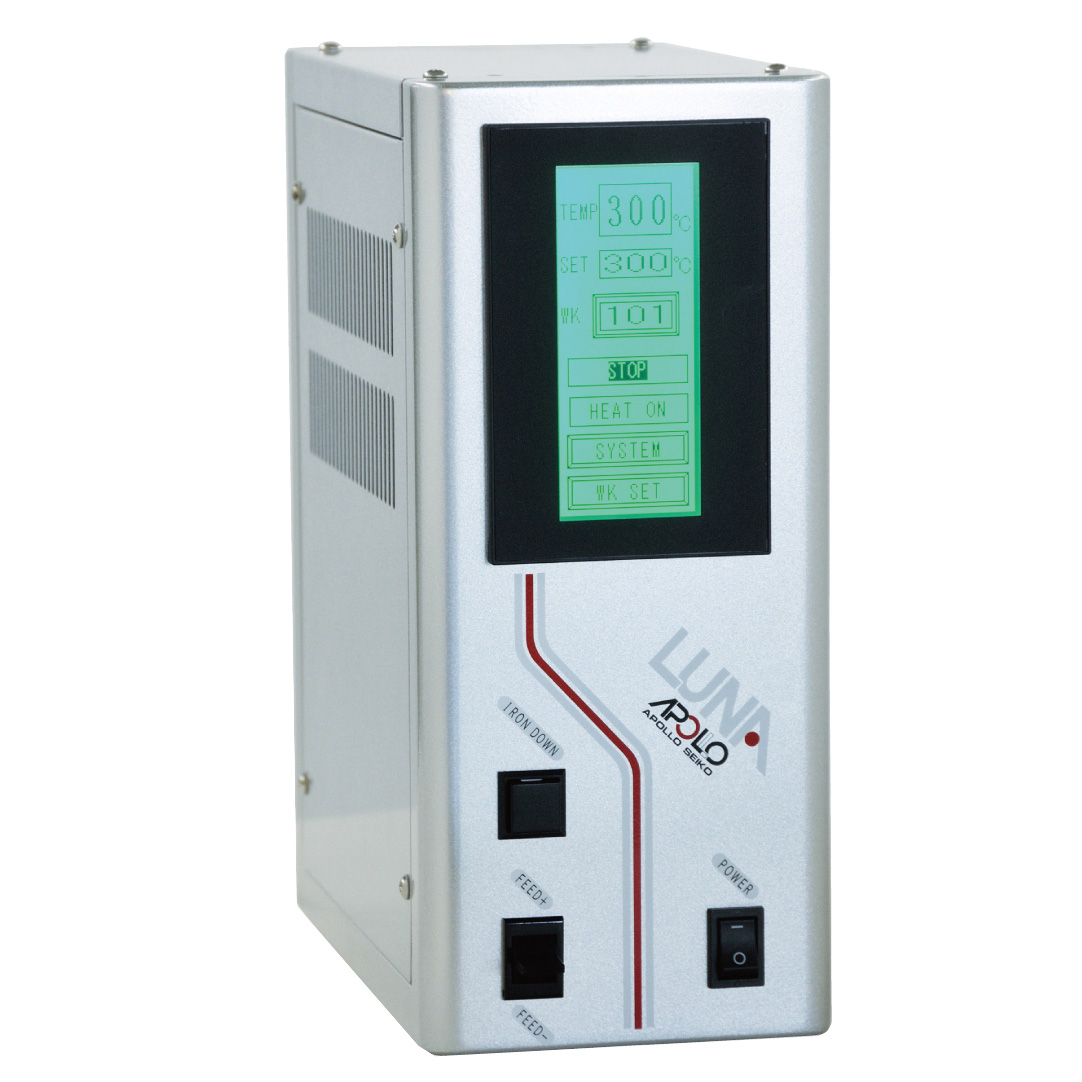

LUNA Solder Controller

This unit was made for automatic soldering. The touch panel is utilized for display and parameter control. The large screen provides easy reading. The seven (7) soldering profiles can be customized to meet typical soldering application requirements. The multiple power (AC90 ~ 264V) input has been designed for worldwide factory use and easy integration into worldwide facilities.

The Luna system can be easily integrated into dial-table, conveyor, robotic or semi-automated environments. The 7 solder profiles can be selected via digital I/O and an extensive iron tip library provide for a solution for virtually all selective solder applications.

LUNA Controller Specifications

POWER AC 90V ~ AC 264V
AIR SUPPLY 0.4 ~ 0.5 MPa
SOLDER TYPE 0.4 ~ 1.6 mm
Select 1 type 0.4~1.2mm for ZSB
SOLDER CONDITIONS 7 Conditions
(Point 4 & Slide 3)
SETTING TEMP 0 ~ 500°
HEATER CAPACITY 100W, 130W
SOLDER STEP 9 Steps
WAIT TEMP 250°C (Adjustable)
EXTERNAL START BOX Optional
CONTROLLER WEIGHT 3.5 kg
FEEDING UNIT WEIGHT 0.8 kg
IRON UNIT WEIGHT 0.5 kg
