J-CAT DSV

Dispensing Desktop Robot

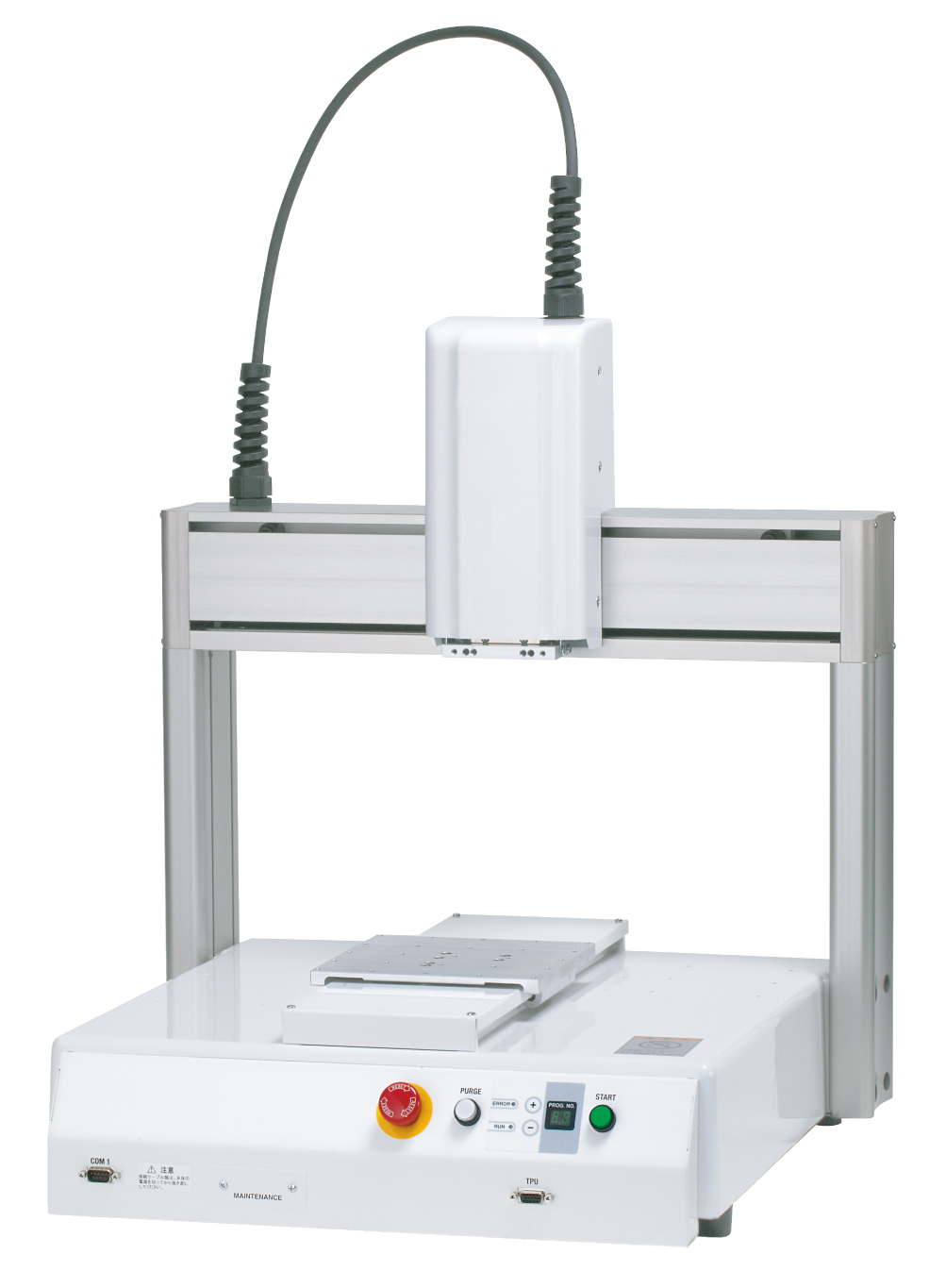

J-CAT DSV Is a newly introduced, economical dispensing robot. This unit has a push button to allow the robot to move to an area for dispense material purging. The standard machine can handle most dispensing applications.



Type

J-Cat 200 DSV

J-Cat 300 DSV

Move Area X=200mm Y=200mm Z=50mm X=300mm Y=320mm Z=50mm
Size (W x D x H) 320 x 364 x 549 mm 560 x 511 x 609 mm
Weight 17 kg 30 kg
Portable Weight Work 5 kg, Tool 2 kg
Maximum Speed PTP, X, Y Axis 500 mm/sec (1 – 500 mm/sec)
200 mm/sec (2 – 200 mm/sec)
Maximum Speed CP X, Y, Z Axes 200 mm/sec (0.1 – 200 mm/sec)
Resolution X, Y, Z Axes: 0.01 mm
Interpolating Function 3 – dimensional line and arc interpolation
External I/O I/O-SYS Input 8, Output 8
II/O – DSP Input 1, Output 2
Teaching Method Remote Teaching (JOG) / Manual Data Input (MDI)
Power Source AC90V – 132V, AC180-250V 1Ph 150VA
Air Pressure 0.5 MPa Dry Air
Accessories Operating Manual (CD-ROM), Power Cable
