J-CAT STELLAR

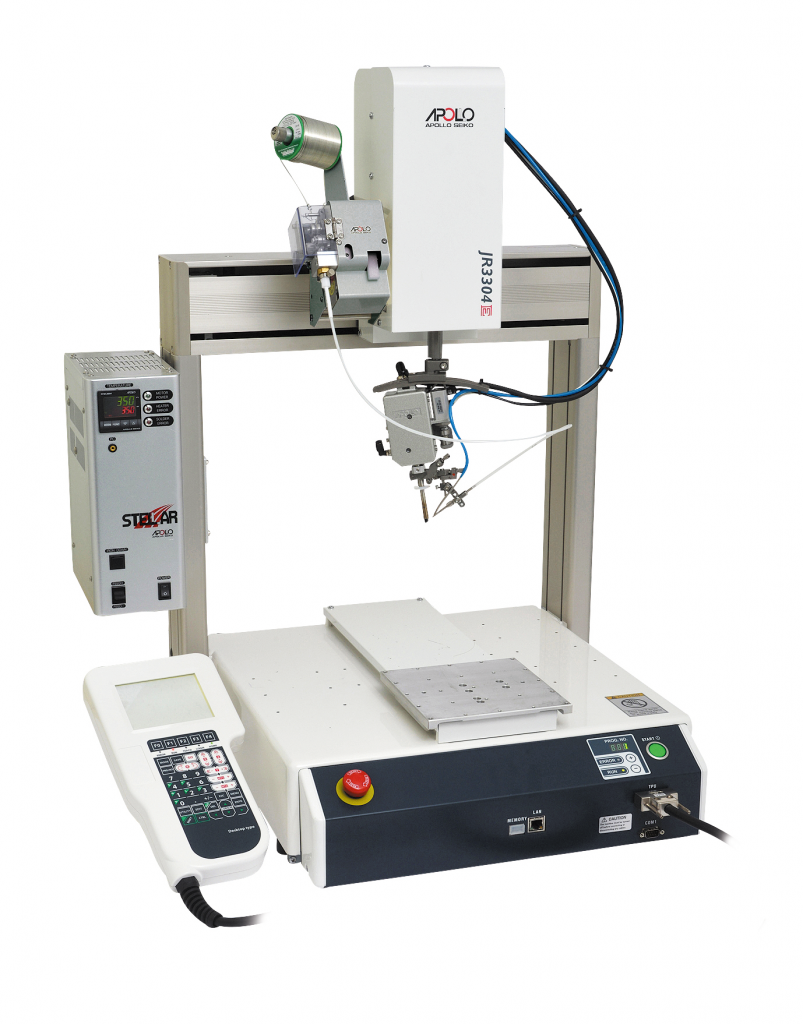

Desktop Soldering Robot J-CAT STELLAR
This robot is high-powered model of the J-CAT COMET.
A 200 watt heater can be added as an attachment, and this machine is able to use the larger 2.0mm solder diameter. This machine is most useful in soldering high sink applications such as multilayer board and shielding case.
Technical Specifications
| Type |
J-CAT 320 Comet |
J-CAT 330 Comet | J-CAT 340 Comet | |
|---|---|---|---|---|
| Operation Range |
X, Y Axes |
200x200 mm |
300x320 mm |
400x400 mm |
| Z Axis |
50 mm |
100 mm |
150 mm |
|
| R Axis |
±360 ° | |||
| Soldering Condition |
Point and slide total; 500 conditions |
|||
| Heater Capacity |
Standard equipment; 200W high capacity heater |
|||
| Power Source |
AC94~260V (Single phase) |
|||
| Power Consumption |
490W |
|||
| Dimensions (WxDxH, in mm) |
443x447x676 | 680x535x844 |
704x691x894 |
|
| Weight (kg) |
31 | 47 | 55 | |
| Other | Sequence function is equipped to work independently from robot |
|||
| High-power solder feeder can feed maximum 2.0mm diameter wire |
||||
