SC+A Position Calibration System

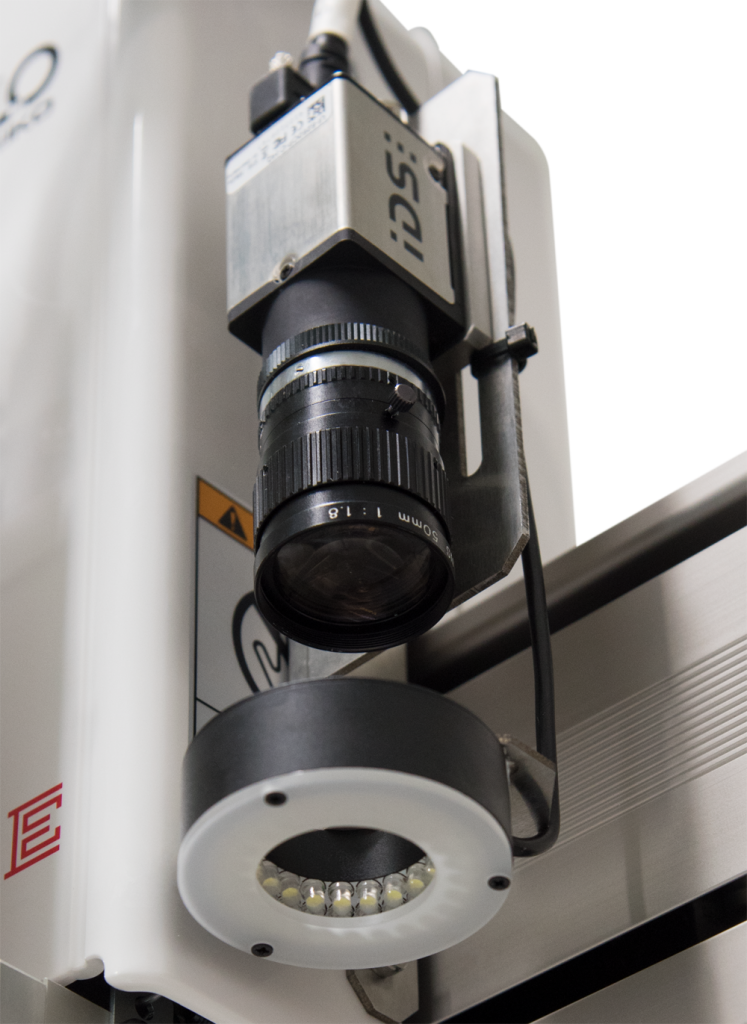

This position calibration camera has been designed exclusively for use with Apollo Seiko soldering robots and can be installed on both the J-CAT and JS SCARA robots.
Technical Specifications
| Type | SC+C301 |
|---|---|
| Compatible Robots | J-CAT/ JS series (without GRT, SCD, DSV robots) |
| Sensor | Color CMOS sensor/ rolling shutter |
| Image Processing | FPGA high-speed picture processing engine (Incorporating camera) |
| Effective Pixels | HD1080: 1920x1080 |
| Search Method | 7 kinds of pattern matching (with pre-processing filter) |
| Registered Model Number | 50 models (with retry functions) |
| Setting Method | Uses image correction software supported on Windows 7 and above |
| Robot Coordinates Calibration | X, Y, R axes |
| Accessories | Camera for position calibration, lens, ring lightning (white), mounting bracket, converter, PoE injector, LAN cable (3pcs), HDMI cable, LAN HUB (not including monitor, PC or PC cable for settings) |
