AF Series

EASY-TO-USE + ECONOMICAL EQUIPMENT

It is with great excitement that we introduce the new AF Series of selective soldering machines. Featuring improved functionality at a REDUCED cost compared to previous models! These new selective flow systems include an option for QR/ Barcodes reading or MES data storage.

AF iN4050

This in-line selective flow system allows for customization and expansion of your equipment.

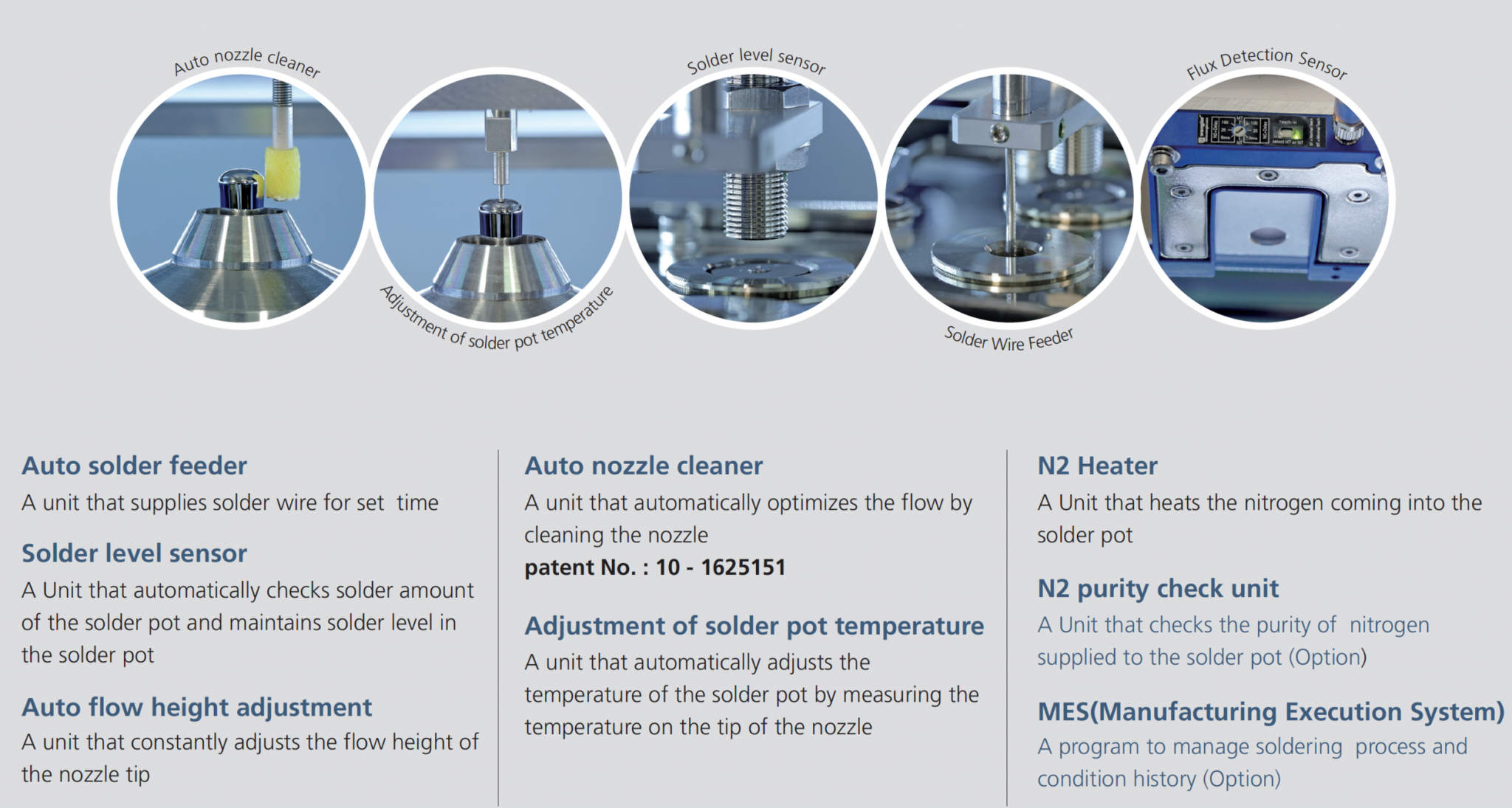

  • Auto flow height adjustment by touch probe and auto nozzle cleaner
  • Auto solder feeder & solder level sensor
  • Auto adjustment of coordinates by fiducial vision
  • Automatic adjustment of solder pot temperature
  • Preheater: Top 3ch IR heater, Bottom 3ch IR heater
  • Ability to save soldering video and MES (Option)
  • Multilingual options (Korean, English, Japanese, Chinese)
  • Working Area (XxY): 500 x 400 mm

Contact us for sizing specifications and availability.

AF iN4050A

Meet our all-in-one selective flow system for production in a high-mix, low-volume environment. It is possible to select from the combination of conveyor type and the application board size (robot stroke).
  • Auto flow heigh adjustment by touch probe and auto nozzle cleaner
  • Auto solder feeder & solder level sensor
  • Auto adjustment of coordinates by the FIDUCIAL VISION
  • Automatic adjustment of solder pot temperature
  • Preheater: Top 3ch IR heater
  • Option to save soldering videos & manage soldering conditions (MES Option)
  • Language options (Korean, English, Japanese, & Chinese)
  • Remote control support by internet

Contact us for sizing specifications and availability.

AF 4050A

This new model is an all-in-one machine for off-line production. It is equipped with all the “bells and whistles” including an automatic nozzle cleaner, automatic solder feeder, and position calibration camera etc.
  • Auto flow height adjustment by touch probe and auto nozzle cleaner
  • Auto solder feeder & solder level sensor
  • Auto adjustment of coordinates by FIDUCIAL VISION
  • Automatic adjustment of solder pot temperature
  • Preheater: Top 3ch IR heater, Bottom 3CH IR heater
  • Ability to save soldering video and MES (Option)
  • Multilingual support (Korean, English, Japanese, Chinese)
  • Remote control support via internet

Contact us for sizing specifications and availability.
