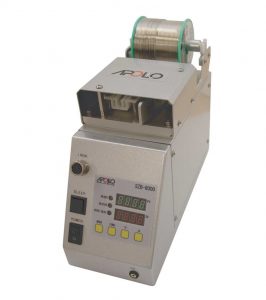

SZB-8000
High-Power Manual Soldering Station
This soldering station consists of a temperature controller and ZSB rollers which help prevent the solder from spattering. This system is very efficient and easy to use. The SZB-7000 has two iron unit options to choose from: Pistol or pencil type iron unit.
With the addition of a router life sensor and a USB camera teaching function (option), the J-CAT GRT is much more efficient and allows for a more stable process.
Technical Specifications
| Type |
SZB-7000 |
|---|---|
| Solder Diameter |
φ0.4~1.6mm |
| Iron Cartridge Type |
DS Type (130V Heater) |
| Power Supply |
AC 100~240V (single phase) |
| Power Consumption |
195VA |
| Temp. Range |
0~500℃ |
| Temp. Control |
PID control |
| Weight | 4kg (main unit) |
| Dimensions (WxDxH) |
110x203x200mm (main unit) |
| Solder Feed Speed |
0~40mm/sec. |
