J-CAT LYRA

DESKTOP SOLDERING ROBOT

The J-CAT LYRA is a new soldering robot with significantly improved base operational features, increased usability and durability.

Advanced Temperature Settings Iron tip temperature can be set individually for each soldering point within the same program. As a result, high-quality soldering of components with different heat capacities, reliable filling of through-hole and perfect back fillets can be achieved.

Advanced Temperature Setting

Iron tip temperature can be set individually for each soldering point within the same program. As a result, high-quality soldering of components with different heat capacities, reliable filling of through-hole and perfect back fillets can be achieved.



Approach Function

The approach function allows fro the programming of an additional axis movement during soldering. This helps to make programming and setup faster and easier for point teaching and also saves intitial setup time.



Dual Iron Units & Feeder (Option)

The high-powered controller can operate two feeder units at the same time. This provides for a reduction in cycle time by 50%. Two iron untis can also be untilized as an option, which is beneficial for soldering high heat capacity components.

Type
J-CAT 320 LYRA
J-CAT 330 LYRA J-CAT 340 LYRA
Drive Method
5-phase stepping motor
Encoder 4-axes Applicable
Resolution X, Y, Z Axes
0.01 mm
R Axis
0.08°
Operation Range
X, Y Axes
200x200 mm
300x320 mm
400x400 mm
Z Axis
50 mm
100 mm
150 mm
R Axis
±360 °
Portable Weight
7 kg
15 kg
Maximum Speed
X, Y Axes
700mm/sec. 900mm/sec.
Z Axis
250mm/sec.
400 mm/sec.
R Axis
600°/sec. 900°/sec.
Repeatability X, Y, Z Axes
±0.01mm
R Axis
±0.008°
Teaching Method
Remote Teaching (JOG)
Manual Data Input (MDI)
External Input/Output
Input :16 Output:16
Program Capacity
999 programs
Memory Capacity
32,000 point
Soldering Condition
Point and slide total; 500 conditions
Setting Temperature
0~500℃
Solder Feeding Speed
1.0~50.0 mm/sec
Solder Feeding Amount Resolution
0.1 mm
Solder Diameter
With ZSB Feeder
φ0.4~φ1.0mm (Option: φ0.3, 1.2, 1.6mm)
With Normal Feeder
φ0.3~φ1.6mm
Heater Capacity
130W
Air Supply
0.4~0.5MPa (Dry & clean air)
Nitrogen Generator
Available (Option: APN-05)
Display Language
English, Chinese, Korean, Japanese, French, Spanish, German, Italian, Japanese, Czech, Vietnamese
Power Source
AC94~260V (Single phase)
Power Consumption
400W
Dimensions (WxDxH, in mm)
440x453x818mm 684x600x872mm
679x660x897mm
Weight (kg)
30 46
54

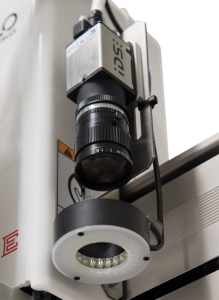

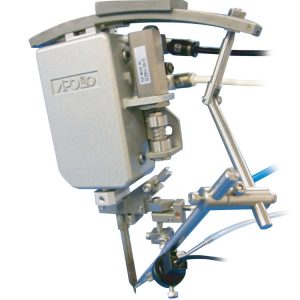

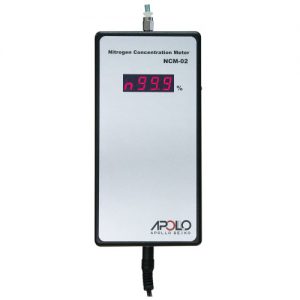

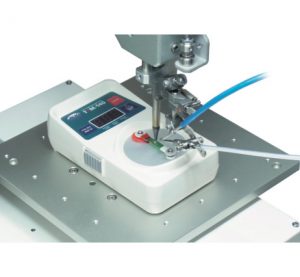

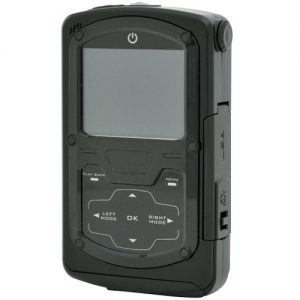

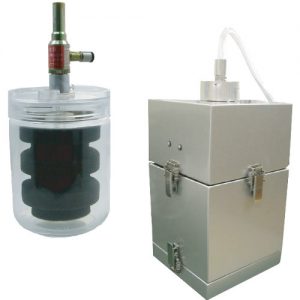

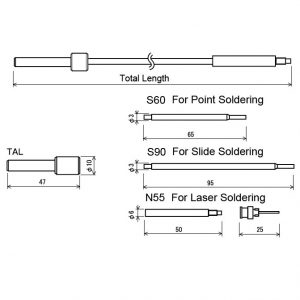

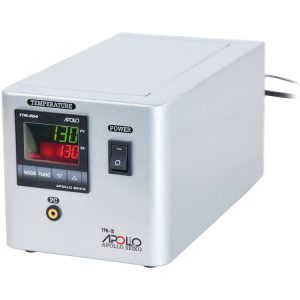

Accessories: What can you customize?
